PFSL-3000 Portable Field Strength Logging System

Features

 Easy portability
 Rechargeable battery
 Automated operation
 GPS included
 Wide frequency range
 Signal level or field strength logging
 Low cost

Until recently, the task of mobile field strength logging required several pieces of conventional equipment interconnected into bulky and expensive systems.

WiNRADiO PFSL-3000 system provides an elegant, fully integrated solution, specifically designed for mobile "drive-by" signal coverage measurements, field strength mapping and related operations.

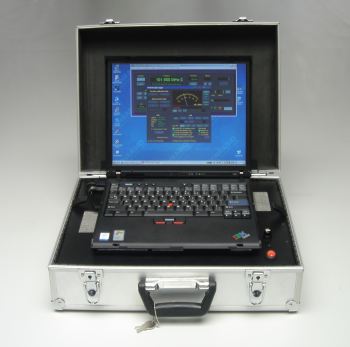

Portable Field Strength Logger

The PFSL-3000 system employs an integrated GPS receiver to display and store geographical co-ordinates of the measured signal. The logged data include time, date, latitude, longtitude and altitude.

The signal level can be measured in V, dBm or S-units, and field strength can be displayed in V/m or dBV/m. Instantaneous, peak or average values can be shown, calculated over user-definable intervals.

The contents of the logs have a flexible format, defined by the user, making the data easy to import into popular GIS packages for further processing. A provision also exists to specify the antenna factor of calibrated antennas for various frequencies, to achieve accurate measurements of field strength.

This system is enclosed in a ruggedized easily transported enclosure, which contains the control computer, the receiver and rechargeable battery all of which can be powered from a vehicle's 12V DC power outlet or from mains power. Leads to connect to mains and the vehicle power outlet are included. The enclosure features dual fans for cooling and built-in fuses protect system components. The GPS, radio receiver and power connectors are conveniently located in a recess on the side of the enclosure and can be accessed with the lid closed.

An integrated LED display shows the built-in battery's power reserve at the press of a button.

These systems are currently in use by major emergency service providers, communications providers and testing authorities world wide.

Receivers

WiNRADiO 3000-Series receivers are at the heart of the PFSL-3000 systems, making it possible to achieve the necessary high level of integration. The receivers are designed to operate in the harsh electromagnetic environment existing inside a computer-based system.


PFSL-3000 Logger Controls

Signal Strength Logger Display

Technical Specifications

The following specifications refer to the standard PFSL-3000 model. These specifications are to be taken as a guide only as the exact types of the receivers and the computer configuration can all be customized to suit customer specific requirements.

Computer IBM Thinkpad lap-top PC
(Please contact us for specific options available.)
Receivers 0.15 - 1500 MHz (WR-3150e)
0.15 - 2600 MHz (WR-3500e)
0.15 - 4000 MHz (WR-3700e)
(customer specified)
Dimensions Shipping size: 560mm x 440mm x 360mm
Net size: 460mm x 330mm x 165mm
Weight Shipping weight: 18kg
Net weight: 11kg

Specifications are subject to change without notice.

Options

An optional receiver calibration service is offered with this product.
